New Untis » Suzuki » Vinson® 500 4x4 Semi-Automatic
Model Quick Search

$6,199.00

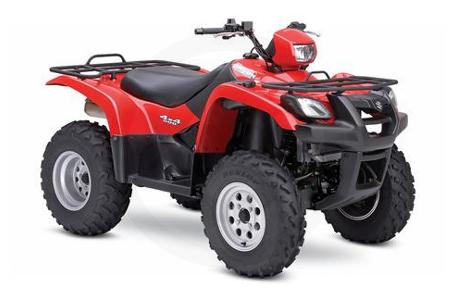

2007 Suzuki Vinson® 500 4x4 Semi-Automatic
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Vinson 500 4x4 Semi-Automatic For an incredible combination of hard-working capabilities and true sporting excitement, you can't beat the Vinson 500 4x4 Semi-Automatic. With its five-speed manual shift automatic clutch transmission - and its incredibly strong powerband - it invites you to take off for a trail ride with your buddies or a hard-charging ride around your local off-road park.

    New Features
    • Updated front and rear rack design for maximum versatility
    Key Features
    • Five-speed version of the industry-leading Suzuki Vinson 4 x 4 with similar features and styling
    Engine Features
    • Durable liquid-cooled, single cylinder, 4-stroke engine tuned for higher torque output and quicker acceleration. Gear-driven balancer shaft reduces vibration
    • Plasma-spray cylinder coating allows lightweight cylinder construction and improved resistance to heat and friction
    • KeihinT CVK36 carburetor for quick throttle response and high fuel efficiency - includes throttle pulley system designed for light throttle lever operation
    • Five-speed transmission with automatic clutch and 2-speed sub-transmission - plus automotive-style single lever operation for forward, reverse and park
    • Electric 2WD/4WD operation with handlebar-mounted push button control.
    • Compact, torque-sensing limited-slip front differential
    • Electric and recoil starting with "in gear" starting capability - engine will start in any transmission setting by pulling the left hand brake lever and pressing the starter button
    • CDI ignition and powerful 325 watt charging system with maintenance-free battery
    Chassis Features
    • New wrinkle-type paint applied to cargo racks for improved durability and improved appearance
    • Aggressive-styled bodywork with high-clearance fenders, integrated full-floor boards, winch-ready front bumper and large T-shaped seat for comfort and support
    • Compact digital instrument display including speedometer, odometer, twin-tripmeter, hourmeter, clock, gear position, fuel gauge and drive mode indicators
    • 12V/120W electrical outlet mounted to front fender - standard automotive-style outlet fits a wide range of electrical accessories
    • Standard pre-wired harness for easy winch installation
    • Bright 30/30W fender-mounted, multi-reflector headlights, plus large 5/21W combination tailllight/brakellight. Additional 40W, handlebar-mounted auxiliary light can be switched off to prevent reflection from front rack cargo
    • Durable steel frame made of large diameter, thin-wall tubing for maximum strength and minimal weight
    • Lightweight polyethylene skid plate and bumper guard provide maximum protection with minimal resistance over rocks and other obstacles
    • Independent double A-arm front suspension with 7.09 in. of wheel travel, and preload-adjustable shock absorbers provide a comfortable ride and high ground clearance (9.9 in.)
    • Swingarm-style rear suspension with preload-adjustable shock absorbers and 7.87 in. of wheel travel
    • Large 190mm front disc brakes and single 216mm rear disc brake for consistent braking performance under all operating conditions
    • Lightweight aluminum wheels
    • High-capacity racks and towing capacity
    • Large 5.0 gallon fuel tank for long-range operation
    • Three-liter waterproof utility box mounted in the front fender, and 4.5 liter rear-mounted storage box
    Special
    • Minimum Age: 16 years old
    Specifications
    • Engine: 493cc, SOHC, four-stroke, single cylinder, liquid-cooled
    • Bore Stroke: 87.5 X 82.0mm
    • Compression Ratio: 10:2:1
    • Fuel System: KeihinT CVK36
    • Lubrication: Wet sump
    • Ignition: CDI
    • Transmission: 5-speed with reverse and 2-speed subtransmission, 2WD/4WD front differential
    • Final Drive: Shaft drive
    • Overall Length: 2095mm (82.5 in.)
    • Overall Width: 1170mm (46.1 in.)
    • Overall Height: 1235mm (48.6 in.)
    • Seat Height: 860mm (33.9 in.)
    • Ground Clearance: 250mm (9.8 in.)
    • Wheelbase: 1270mm (50.0 in.)
    • Dry Weight: 274kg (604 lbs.)
    • Suspension Front: Independent, double A-arm, oil damped, five preload settings
    • Suspension Rear: Swingarm-type, oil-damped, five preload settings
    • Brakes Front: Dual hydraulic disc
    • Brakes Rear: Single hydraulic disc
    • Tires Front: AT 25 x 8-12
    • Tires Rear: AT 25 x 10-12
    • Fuel Tank Capacity: 19.0 liter (5.0 gal.)
    • Color: Red, Green, Black

    Specifications

    Engine
    Engine Type Four-stroke, SOHC
    Displacement 493 cc
    Bore x Stroke 87.5 x 82.0 mm
    Cylinders Single
    Engine Cooling Liquid
    Fuel System KeihinT CVK36
    Starting System CDI
    Chassis
    Front Suspension Independent, double A-arm, oil damped, five preload settings
    Front Brake Type Dual hydraulic disc
    Front Tires AT 25 x 8-12
    Rear Suspension Swingarm-type, oil-damped, five preload settings
    Rear Brake Type Single hydraulic disc
    Rear Tires AT 25 x 10-12
    Dimensions/Capacities
    Dry Weight 604 lbs.
    Fuel Capacity 5.0 gal.
    Ground Clearance 9.8 in.
    Machine Dimensions (LxWxH) 82.5" x 46.1" x 48.6"
    Wheelbase 50.0 in.
    Drive Train
    Final Drive Shaft drive
    Transmission 5-speed with reverse and 2-speed subtransmission, 2WD/4WD front differential
    General
    Colors Red, Green, Black
    Warranty 6 month limited warranty.

    Compare Models

    		 Print








    Year 2007
    Manufacturer Suzuki
    Model Vinson® 500 4x4 Semi-Automatic
    Style Utility
    MSRP* $6,199.00
    Chassis
    Front Suspension Independent, double A-arm, oil damped, five preload settings
    Front Travel
    Front Brake Type Dual hydraulic disc
    Front Tires AT 25 x 8-12
    Rear Suspension Swingarm-type, oil-damped, five preload settings
    Rear Travel
    Rear Brake Type Single hydraulic disc
    Rear Tires AT 25 x 10-12
    Frame
    Dimensions/Capacities
    Dry Weight 604 lbs.
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 5.0 gal.
    Ground Clearance 9.8 in.
    Machine Dimensions (LxWxH) 82.5" x 46.1" x 48.6"
    Wheelbase 50.0 in.
    Drive Train
    Drive Train
    Final Drive Shaft drive
    Transmission 5-speed with reverse and 2-speed subtransmission, 2WD/4WD front differential
    Engine
    Engine Type Four-stroke, SOHC
    Displacement 493 cc
    Bore x Stroke 87.5 x 82.0 mm
    Cylinders Single
    Engine Cooling Liquid
    Fuel System KeihinT CVK36
    Starting System CDI
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Red, Green, Black
    Warranty 6 month limited warranty.
